T640D // ROAD DISC

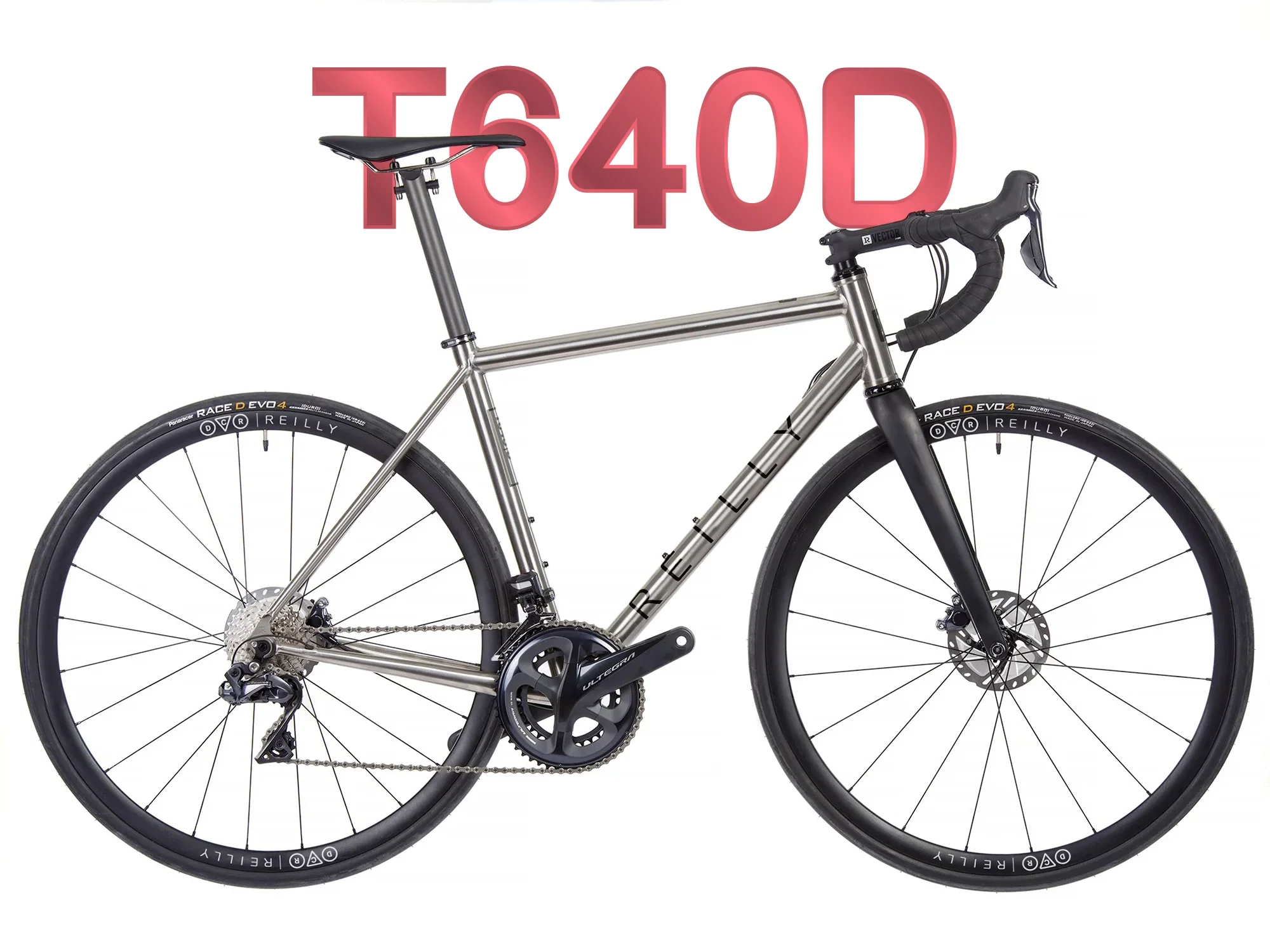

Product image 1

T640D // ROAD DISC

Titanium Grade 6AL -4V Main Tubes with 3AL- 2.5
Front Derailleur Clamp 34.9mm Band Adapter
Bottom Bracket Shell BSA English Threaded
Bottom Bracket As per groupset manufacturer
Cable Routing External Gear Cable Routing; Internal Downtube Brake Hose Routing
Fork UDM Carbon Fork
Brakes Hydraulic Disc with Flat-Mount Calipers
Rotors 160F/140R
Thru Axles 100mmx12mmF; 142mmx12mmR
Wheels DCR x Reilly Road Disc 31mm Alloy Wheelset, Tubeless Ready
Tyres Continental GP 5000 28mm (non-tubeless)
Max Clearance 700c 32mm
Headset Reilly Aluminium Headset, Black, Red or Blue (for 44mm head tubes, 1.1/8"-1.5" steerers) as chosen
Bars / Width Reilly Aluminium Compact Bars, (Drop 125mm; Reach 75mm, Flare: 4°) as chosen
Stem / Length Reilly Aluminium Stem, (Angle: 84°/-6°) as chosen
Bar Tape Black EVA Bar Tape
Seatpost Reilly UD Carbon Seatpost, 31.6mmx350mm, with x2 6AL-4V titanium retaining bolts
Seat Clamp Reilly Super Lite Alloy Seat Clamp, Black, 34.9mm
Saddle Reilly Titanium Carbon ‘Airform’ Saddle
Frame Features x2 Bottle Cage Mounts
Set-Up British Standard, whereby the right-hand lever operates the front brake and the left-hand lever operates the rear brake
Warranty Lifetime Frame Warranty (Original Owner Only, Non-Transferable) T&Cs Apply


Frame Geometry

SIZE SMALL MEDIUM LARGE EXTRA LARGE
SEAT TUBE C/TOP 490mm 510mm 530mm 540mm
TOP TUBE EFFECTIVE 530mm 550mm 570mm 590mm
BB DROP 72mm 72mm 72mm 72mm
CHAINSTAY LENGTH 407mm 408mm 410mm 410mm
FORK RAKE 43mm 43mm 43mm 43mm
TRAIL 63mm 56mm 56mm 56mm
FRONT CENTRE 578mm 584mm 599mm 619mm
WHEELBASE 974mm 981mm 996mm 1016mm
STANDOVER 753mm 774mm 792mm 804mm
HEAD TUBE 130mm 150mm 170mm 185mm
STACK 541mm 564mm 583mm 597mm
REACH 374mm 382mm 392mm 407mm
Select Size
From $2,112.44

Original: $6,035.53

-65%
T640D // ROAD DISC—

$6,035.53

$2,112.44

Product Information

Shipping & Returns

Description

Titanium Grade 6AL -4V Main Tubes with 3AL- 2.5
Front Derailleur Clamp 34.9mm Band Adapter
Bottom Bracket Shell BSA English Threaded
Bottom Bracket As per groupset manufacturer
Cable Routing External Gear Cable Routing; Internal Downtube Brake Hose Routing
Fork UDM Carbon Fork
Brakes Hydraulic Disc with Flat-Mount Calipers
Rotors 160F/140R
Thru Axles 100mmx12mmF; 142mmx12mmR
Wheels DCR x Reilly Road Disc 31mm Alloy Wheelset, Tubeless Ready
Tyres Continental GP 5000 28mm (non-tubeless)
Max Clearance 700c 32mm
Headset Reilly Aluminium Headset, Black, Red or Blue (for 44mm head tubes, 1.1/8"-1.5" steerers) as chosen
Bars / Width Reilly Aluminium Compact Bars, (Drop 125mm; Reach 75mm, Flare: 4°) as chosen
Stem / Length Reilly Aluminium Stem, (Angle: 84°/-6°) as chosen
Bar Tape Black EVA Bar Tape
Seatpost Reilly UD Carbon Seatpost, 31.6mmx350mm, with x2 6AL-4V titanium retaining bolts
Seat Clamp Reilly Super Lite Alloy Seat Clamp, Black, 34.9mm
Saddle Reilly Titanium Carbon ‘Airform’ Saddle
Frame Features x2 Bottle Cage Mounts
Set-Up British Standard, whereby the right-hand lever operates the front brake and the left-hand lever operates the rear brake
Warranty Lifetime Frame Warranty (Original Owner Only, Non-Transferable) T&Cs Apply


Frame Geometry

SIZE SMALL MEDIUM LARGE EXTRA LARGE
SEAT TUBE C/TOP 490mm 510mm 530mm 540mm
TOP TUBE EFFECTIVE 530mm 550mm 570mm 590mm
BB DROP 72mm 72mm 72mm 72mm
CHAINSTAY LENGTH 407mm 408mm 410mm 410mm
FORK RAKE 43mm 43mm 43mm 43mm
TRAIL 63mm 56mm 56mm 56mm
FRONT CENTRE 578mm 584mm 599mm 619mm
WHEELBASE 974mm 981mm 996mm 1016mm
STANDOVER 753mm 774mm 792mm 804mm
HEAD TUBE 130mm 150mm 170mm 185mm
STACK 541mm 564mm 583mm 597mm
REACH 374mm 382mm 392mm 407mm
